Who am I?

• Lecturer in Computer Science at Aston University
• Committer in Eclipse Epsilon since 2011
• Used Epsilon for several approaches:
  • Test design and generation
  • Process-oriented website generation
  • Self-adaptive system introspection
  • Timetable optimisation and export/import

Session outline

1. Review of main concepts from last session
2. Query and modify models with EolModule
3. Transform models with EtlModule
4. Generate text with EglTemplateFactoryModuleAdapter
5. (Optional) Extend Epsilon with our own Java code

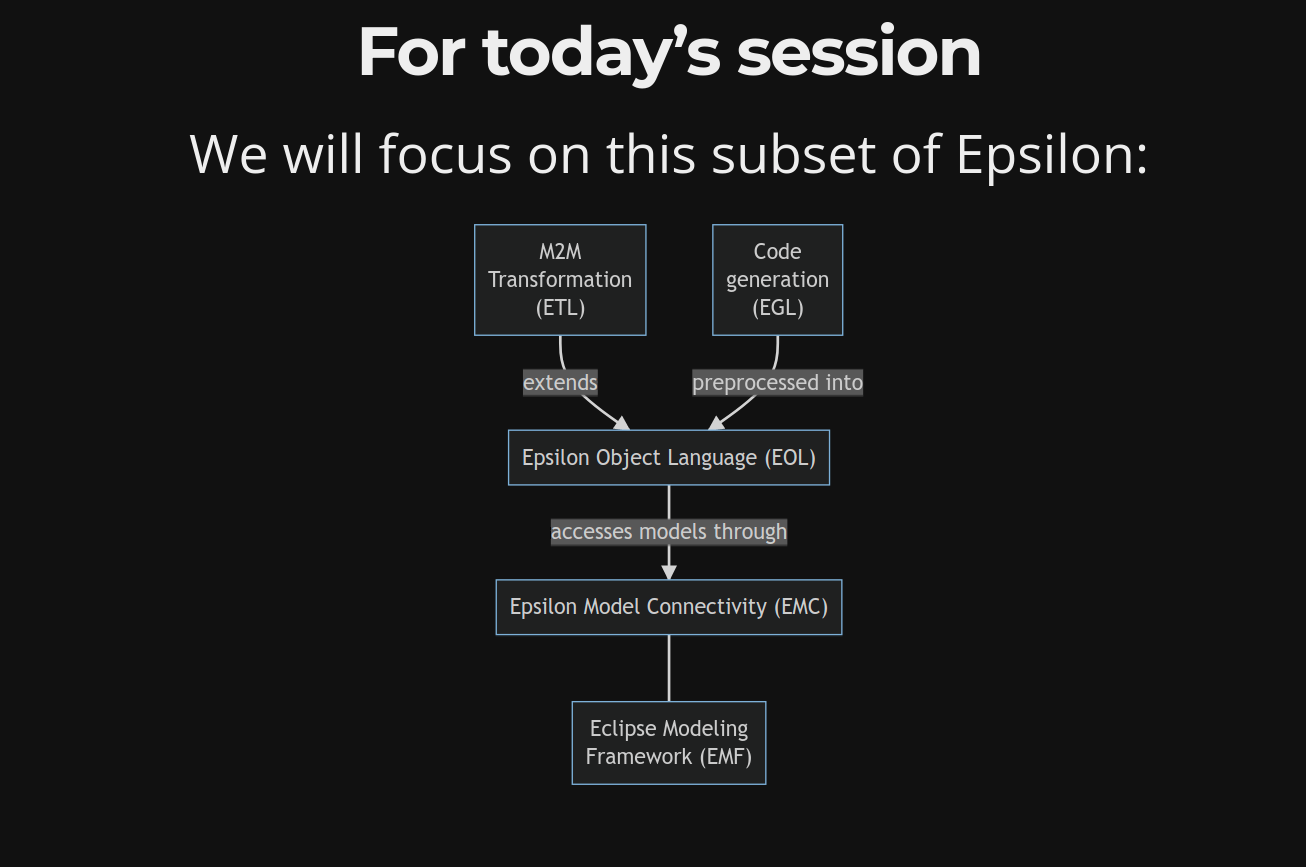

Review on modeling concepts

• MDE is about using models to develop our system: partial descriptions for a certain purpose
• A model is written in a modeling language, with formal syntax:
  • Abstract syntax: the concepts (e.g. Class)
  • Concrete syntax: the notation (e.g. textual/graphical)
• Modeling languages may be “general purpose” (e.g. UML) or domain-specific

Environment setup with Gitpod.io

• In the previous session, we used the Epsilon Playground to introduce Epsilon
• This session will focus on invoking E*L scripts from Java code, using the Maven artifacts available from Maven Central
• Epsilon can also be used from the Eclipse IDE, or from its Ant/Maven/Gradle tasks
• To avoid having to set up an IDE, we will use Gitpod.io: open this link and authenticate via GitHub.

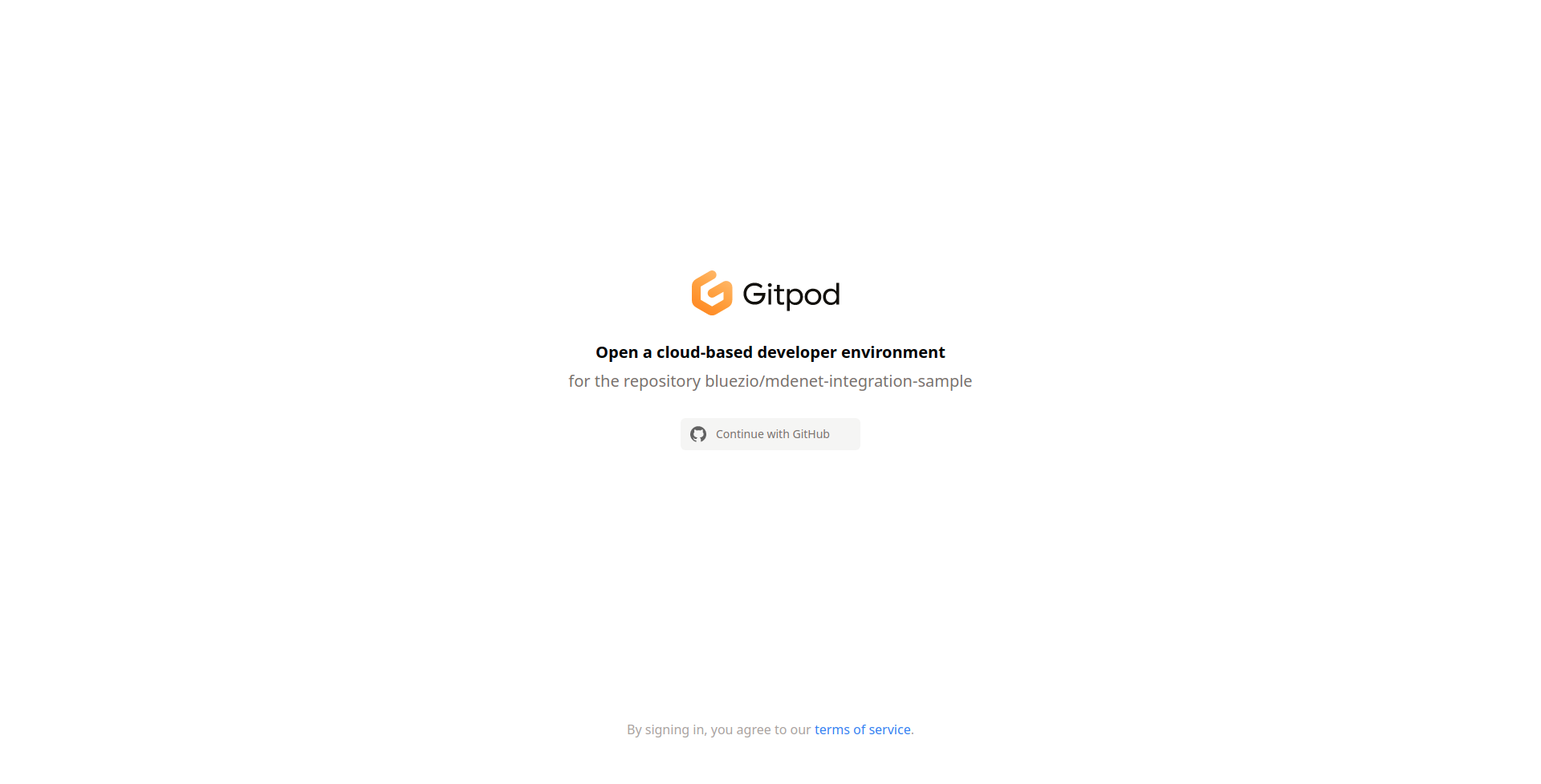

Gitpod.io: authentication

Gitpod.io: main page

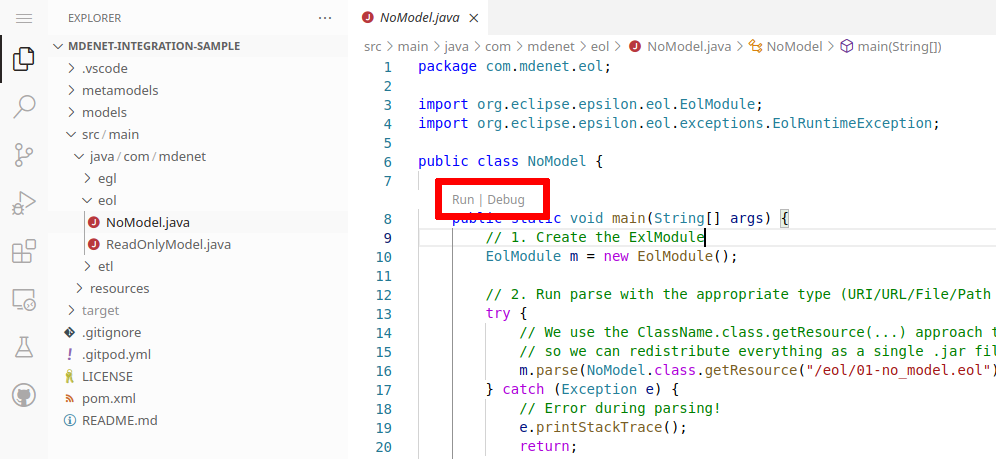

Gitpod.io: first-time check

• Press Ctrl+P, type NoModel and press Enter
• If you do not see “Run | Debug”, reload the page

Project structure

• Standard Maven-based project (with a pom.xml)
• We use Java 11 sources, building for Java 11+
• We are using Epsilon 2.4.0 interims (-SNAPSHOT), to avoid a warning message when using EGL
• We use <dependencyManagement> to ensure we use modern Eclipse core JARs:
  • The Eclipse JARs in Maven Central use version range dependencies (mimicking Eclipse plugin semantics)
  • These range-based dependencies can sometimes result in mismatched code signing certificates

Maven dependency: EOL

<dependency>
  <groupId>org.eclipse.epsilon</groupId>
  <artifactId>org.eclipse.epsilon.eol.engine</artifactId>
  <version>${epsilon.version}</version>
</dependency>

• Stable Epsilon JARs available from Maven Central
• Interim Epsilon JARs available from Sonatype
• Artifact ID points to the EOL execution engine
• Maven epsilon.version property ensures the Epsilon JARs match each other

EOL without a model (1/2)

• Enter Ctrl+P and open NoModel.java
• You will notice it follows three large steps:
  1. Create a new EolModule
  2. Call .parse() while passing the reference to the script location: in this case, we package the script with our application, but it could be an external file
  3. Run .execute() to obtain the result (in case the last statement is a return)
• Try clicking on “Run” above public static void main, and watch the terminal

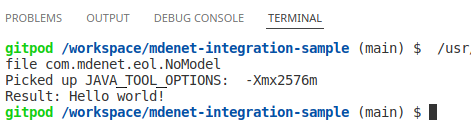

EOL without a model (2/2)

• No big surprises here :-)
• Ignore the Picked up part: it’s Gitpod-specific
• Obviously, we want to work on models: let’s do that next!

EOL with a read-only model

• Enter Ctrl + P and open ReadOnlyModel.java
• There are quite a few more steps here:
  1. Configure EMF to support Flexmi / Emfatic models
  2. Parse the EOL code (same as before)
  3. Set up an EmfModel and add it to the model repository of the EolModule
  4. Run the EOL script
  5. Dispose all models in the model repository

What is EmfModel?

• EmfModel is an implementation of the EMC IModel interface
• It allows Epsilon to use EMF-based models
• Epsilon is otherwise independent from EMF: if you want to support a non-EMF model format, just provide your own IModel implementation

New dependency: EMF EMC driver

<dependency>
  <groupId>org.eclipse.epsilon</groupId>
  <artifactId>org.eclipse.epsilon.emc.emf</artifactId>
  <version>${epsilon.version}</version>
</dependency>

• This Maven artifact provides EmfModel
• By default, EMF only supports the XMI/XML model format

New dependency: Flexmi

<dependency>
  <groupId>org.eclipse.epsilon</groupId>
  <artifactId>org.eclipse.epsilon.flexmi</artifactId>
  <version>${epsilon.version}</version>
</dependency>

• Allows Epsilon to read Flexmi models

New dependency: Emfatic

<dependency>
  <groupId>org.eclipse.emfatic</groupId>
  <artifactId>org.eclipse.emfatic.core</artifactId>
  <version>1.0.0</version>
</dependency>

• Allows Epsilon to read EMF metamodels in the Emfatic language

Telling EMF about Flexmi and Emfatic

final var emap = Resource.Factory.Registry.INSTANCE.getExtensionToFactoryMap();
emap.put("flexmi", new FlexmiResourceFactory());
emap.put("emf", new EmfaticResourceFactory());

• EMF can be told which parser (resource factory) to use based on the file extension
• In the above code, we are accessing the global registry and registering the .flexmi and .emf file extensions (on top of the default .xmi one)

How do you use EmfModel?

1. Specify the metamodel with your modeling language’s concepts (here, it’s a file path)
2. Specify the location of the model (also a file path)
3. Decide if the specified location should be read when the model is loaded:
   • true iff model is an input to the current task
4. Decide if the model should be saved back when the model is disposed:
   • true iff model is an output of the current task
5. Trigger the load with m.load()
6. Add it to the model repository of the module

Disposing of models

• Since Java is garbage collected, simply having the EolModule variable go out of scope is not enough to free its resources (as in C++)
• Always remember to dispose() the model repository once a model is done running:
  1. Allows models to be GC’ed if no longer referenced
  2. Saves the models with setStoredOnDisposal(true)

Test and tweak ReadOnlyModel

Running ReadOnlyModel will produce the same output as in the Playground:

• Instead of printing a value, change the last statement to a return
• Change your Java code to print the result

WriteModel: adding a task (1/3)

• Now, create a copy of ReadOnlyModel called WriteModel that:
  • Runs 03-add_task.eol instead
  • Loads and saves models/project.flexmi.xmi
    • Note: saving is a no-op in Flexmi, hence we use XMI
• Try running the class again: what happened?

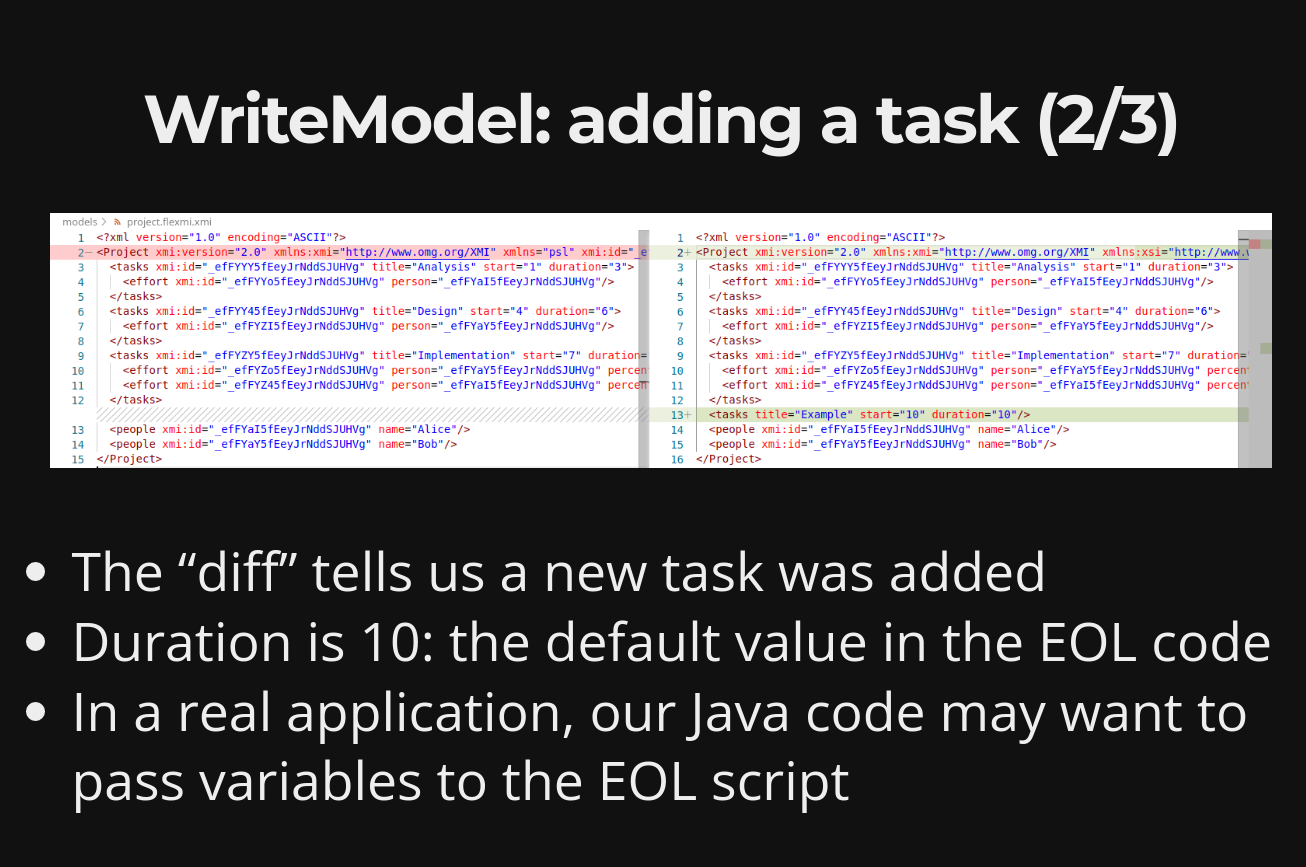

WriteModel: adding a task (2/3)

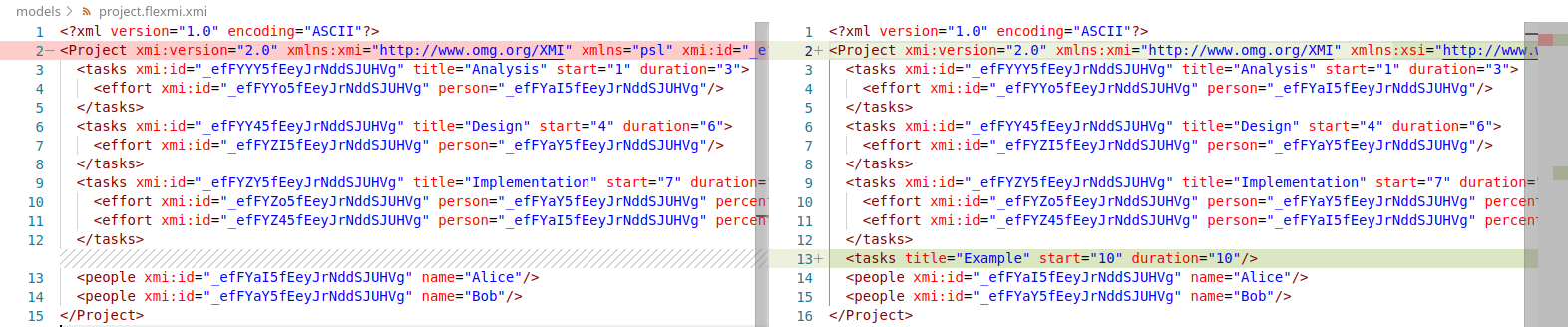

• The “diff” tells us a new task was added
• Duration is 10: the default value in the EOL code
• In a real application, our Java code may want to pass variables to the EOL script

WriteModel: adding a task (3/3)

eol.getContext().getFrameStack()
   .put(Variable.createReadOnlyVariable("duration", 42));

• Add the above code before the .execute() call, importing execute.context.Variable
• Rerun WriteModel: you should see a new task with the specified duration
• Epsilon organises variables into a stack of frames, with a frame for global variables, and additional frames for each nested operation call

Code walkthrough

• Enter Ctrl + P and open Tree2Graph.java
• Uses ETL to transform a tree to a graph
• It follows similar steps as for EOL:
  1. Register the Flexmi/Emfatic parsers into EMF
  2. Parse the ETL script
  3. Create a source EmfModel
  4. Create a target EmfModel
  5. Execute the transformation
  6. Dispose of the models

Model names and read/stored flags

// Allows using Source!Tree to refer to the type
source.setName("Source");
// We only read from this model
source.setReadOnLoad(true);
source.setStoredOnDisposal(false);

// Allows using Target!Graph
target.setName("Target");
// We only write to this model
target.setReadOnLoad(false);
target.setStoredOnDisposal(true);

Notes about model repositories

• A model repository can have as many models as we like, and we can mix EMF and non-EMF ones
• ETL can transform one source element to one or more target elements
• ETL can work with multiple input models

Obtaining traceability from ETL (1/4)

• Run Tree2Graph, and open models/graph.xmi
• We have a graph, but where did each node come from? We need traceability information!
• Add this after etl.execute() inside the try:

for (Transformation tx : etl.getContext().getTransformationTrace().getTransformations()) {
  System.out.println(tx.getSource() + " produced " + tx.getTargets());
}

Obtaining traceability from ETL (2/4)

Run Tree2Graph and you will get a list like this:

org.eclipse.emf.ecore.impl.DynamicEObjectImpl@576f63f6 (eClass: org.eclipse.emf.ecore.impl.EClassImpl@3403e2ac (name: Tree) (instanceClassName: null) (abstract: false, interface: false)) produced [org.eclipse.emf.ecore.impl.DynamicEObjectImpl@13e547a9 (eClass: org.eclipse.emf.ecore.impl.EClassImpl@40844aab (name: Graph) (instanceClassName: null) (abstract: false, interface: false))]
org.eclipse.emf.ecore.impl.DynamicEObjectImpl@2dca0d64 (eClass: org.eclipse.emf.ecore.impl.EClassImpl@3403e2ac (name: Tree) (instanceClassName: null) (abstract: false, interface: false)) produced [org.eclipse.emf.ecore.impl.DynamicEObjectImpl@3fb6cf60 (eClass: org.eclipse.emf.ecore.impl.EClassImpl@447a020 (name: Node) (instanceClassName: null) (abstract: false, interface: false))]
org.eclipse.emf.ecore.impl.DynamicEObjectImpl@5ef6ae06 (eClass: org.eclipse.emf.ecore.impl.EClassImpl@3403e2ac (name: Tree) (instanceClassName: null) (abstract: false, interface: false)) produced [org.eclipse.emf.ecore.impl.DynamicEObjectImpl@37ddb69a (eClass: org.eclipse.emf.ecore.impl.EClassImpl@447a020 (name: Node) (instanceClassName: null) (abstract: false, interface: false))]
org.eclipse.emf.ecore.impl.DynamicEObjectImpl@55dfebeb (eClass: org.eclipse.emf.ecore.impl.EClassImpl@3403e2ac (name: Tree) (instanceClassName: null) (abstract: false, interface: false)) produced [org.eclipse.emf.ecore.impl.DynamicEObjectImpl@349c1daf (eClass: org.eclipse.emf.ecore.impl.EClassImpl@447a020 (name: Node) (instanceClassName: null) (abstract: false, interface: false))]

Not particularly nice to look at…

Obtaining traceability from ETL (3/4)

Change the code to this:

for (Transformation tx : etl.getContext().getTransformationTrace().getTransformations()) {
    EObject eob = (EObject) tx.getSource();
    EStructuralFeature sfLabel = eob.eClass().getEStructuralFeature("label");
    String label = (String) eob.eGet(sfLabel);

    for (Object txTarget : tx.getTargets()) {
        EObject eobTarget = (EObject) txTarget;
        EStructuralFeature sfName = eobTarget.eClass().getEStructuralFeature("name");
        String name = (String) eobTarget.eGet(sfName);
        System.out.println("Tree " + label + " produced Node " + name);
    }
}

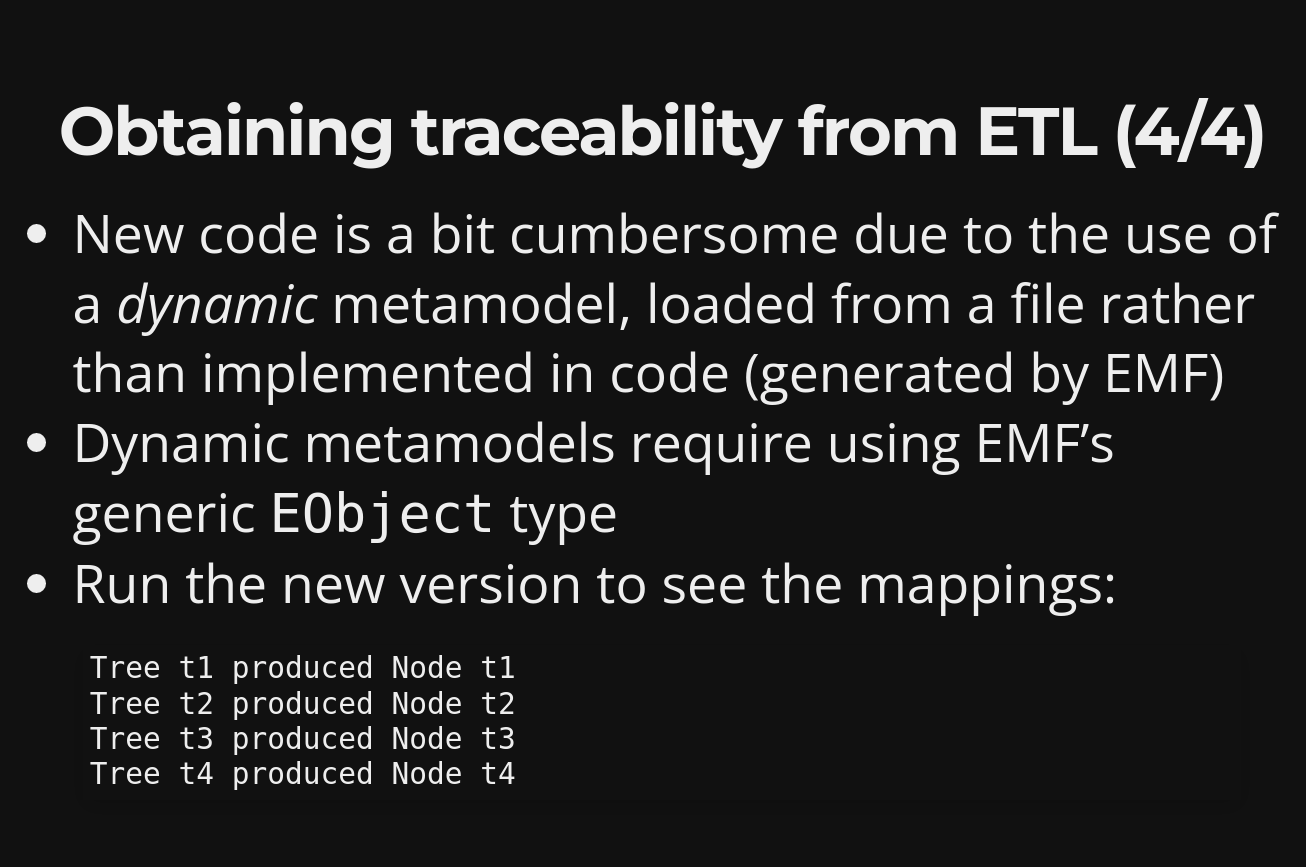

Obtaining traceability from ETL (4/4)

• New code is a bit cumbersome due to the use of a dynamic metamodel, loaded from a file rather than implemented in code (generated by EMF)
• Dynamic metamodels require using EMF’s generic EObject type
• Run the new version to see the mappings:

Tree t1 produced Node t1
Tree t2 produced Node t2
Tree t3 produced Node t3
Tree t4 produced Node t4

Code walkthrough

• Enter Ctrl + P and open Project2Chart.java
• The steps should be quite familiar:
  1. Register the Flexmi/Emfatic parsers into EMF
  2. Parse the EGL script
  3. Create a source EmfModel
  4. Execute the script
  5. Dispose of the models
• Run it to obtain the output.html file

EGL module adapter

• Internally, EGL works by generating an EOL file from your EGL script
• EglTemplateFactoryModuleAdapter is an adapter over EGL’s internal APIs that can be used in the same way as the ExlModule classes of the other Epsilon languages

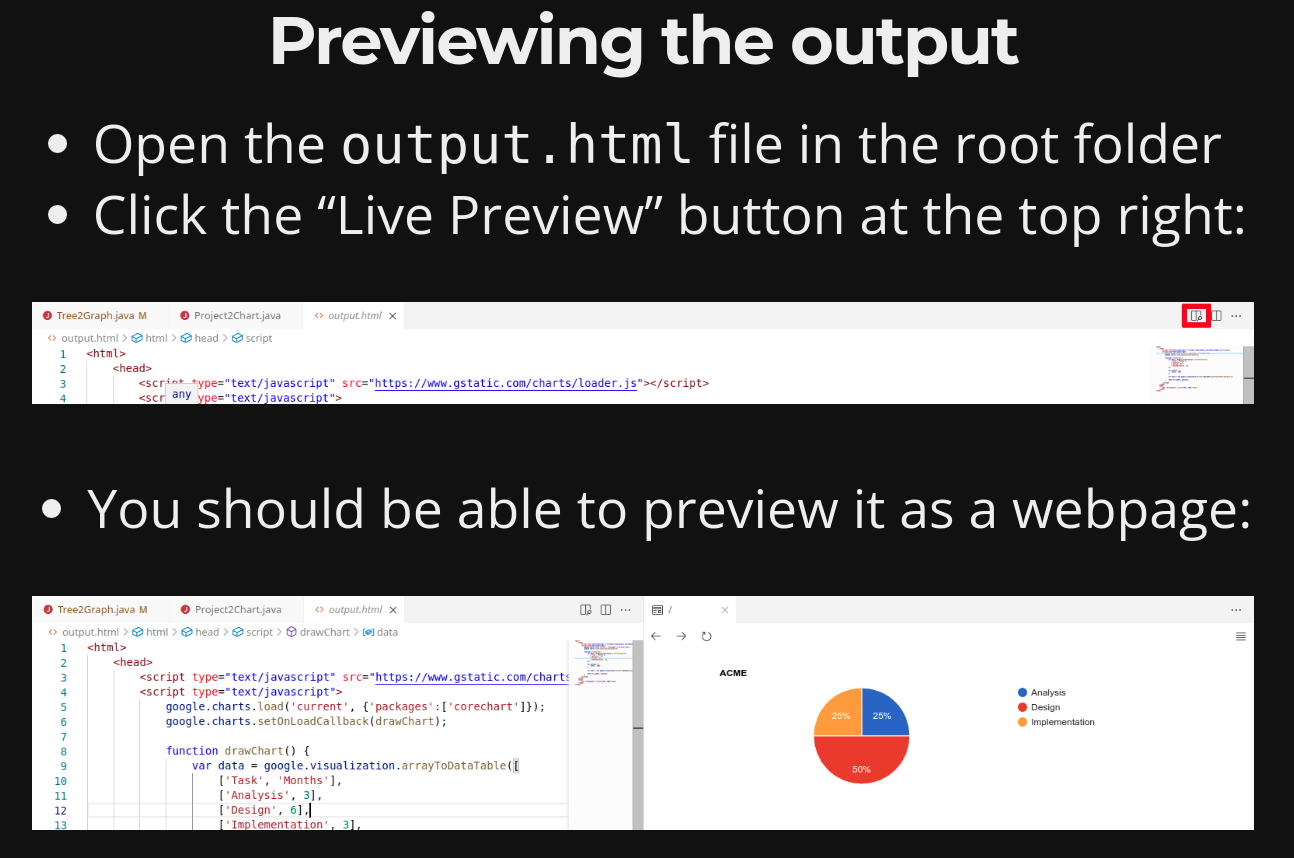

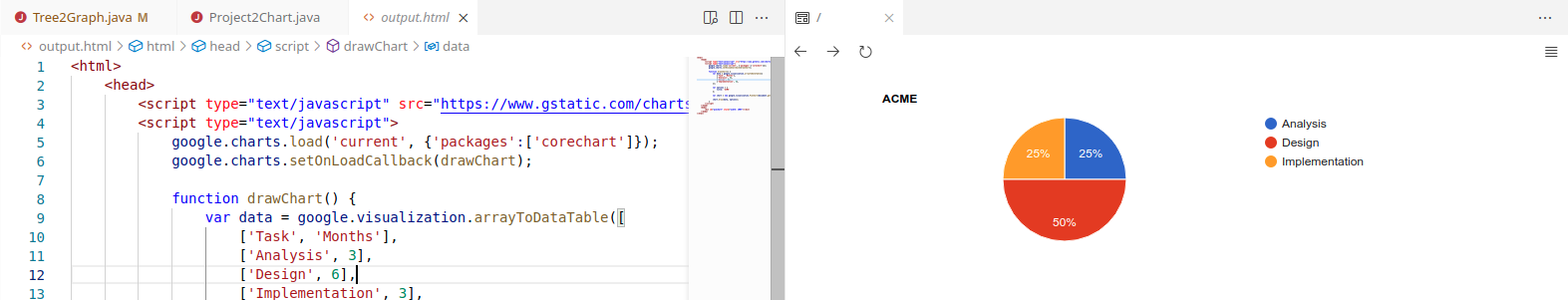

Previewing the output

• Open the output.html file in the root folder

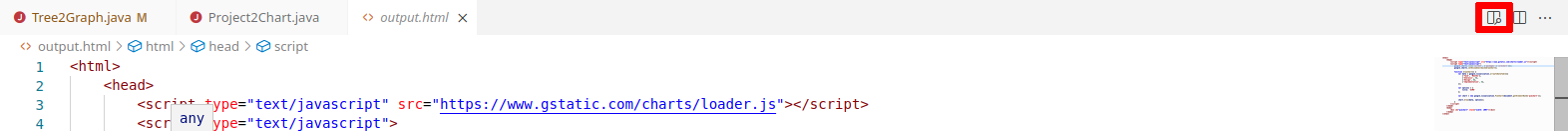

• Click the “Live Preview” button at the top right:

• You should be able to preview it as a webpage:

Thank you!

Antonio Garcia-Dominguez

a.garcia-dominguez AT aston.ac.uk

@antoniogado

Further discussion topics

• Calling Java from Epsilon
• Calling native lambda expressions
• Developing a new EMC driver
• Instrumenting Epsilon programs
